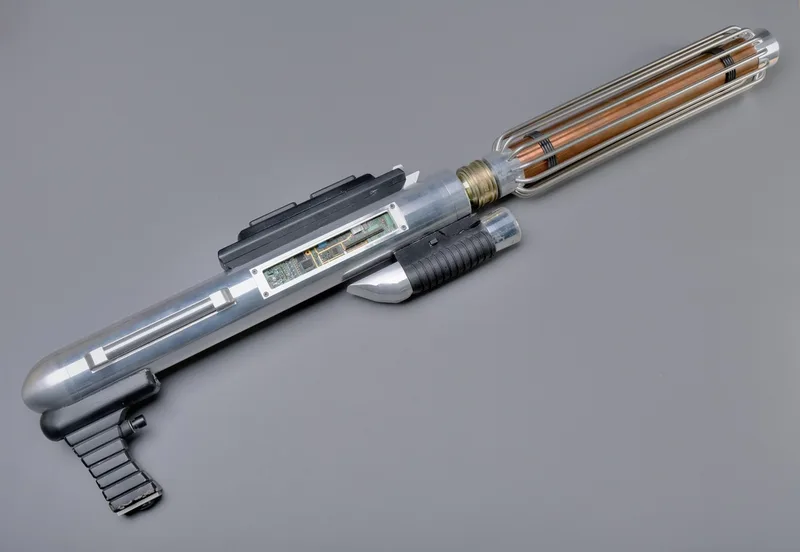

High-Power Directed Energy Rifle
Breaks Down Into 5-Components For Transport

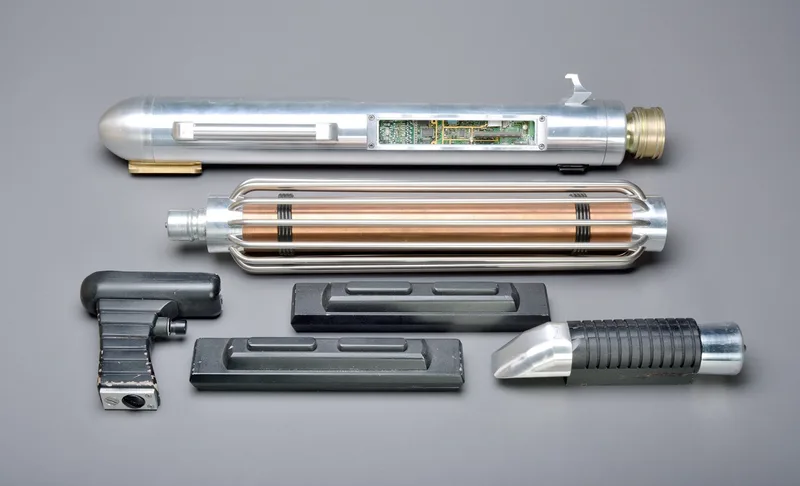

43-¼ inches long. Weapon can be broken down...
…into to 5 smaller components for transport.

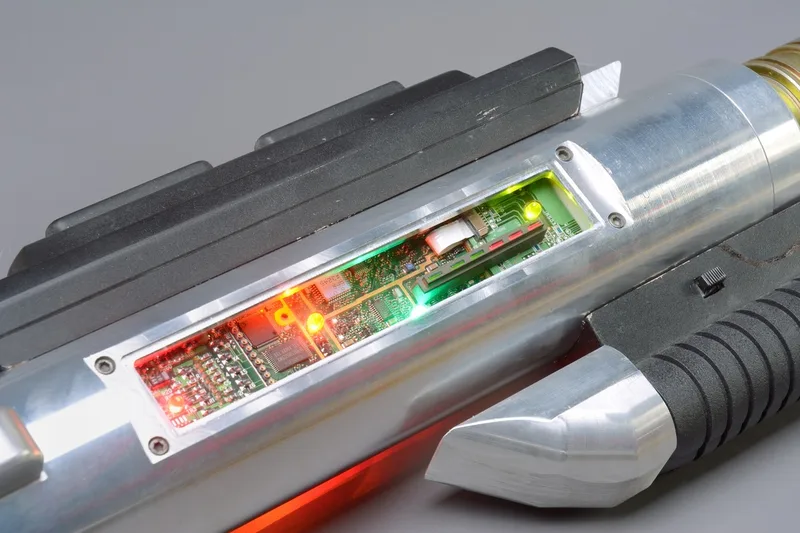

Features animated LED lighting.

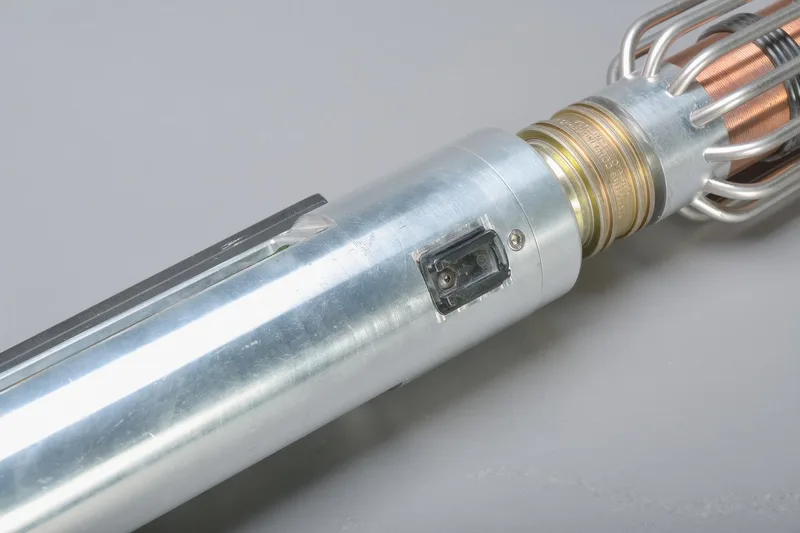

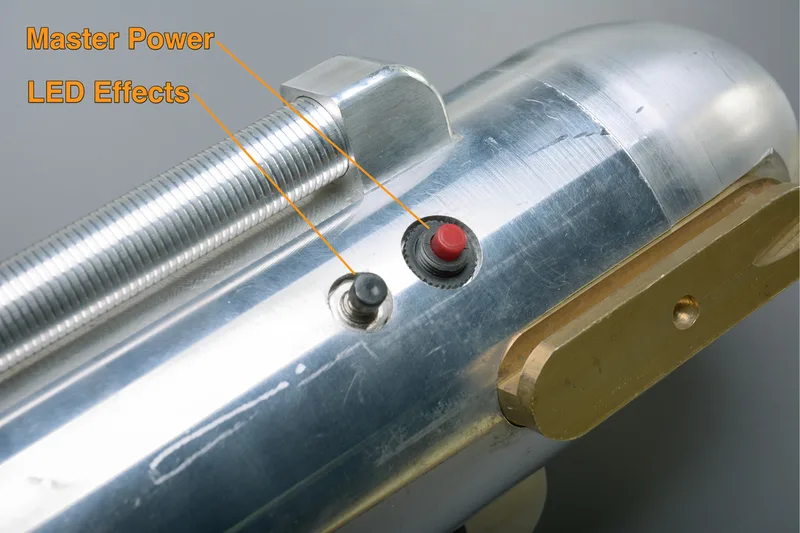

Lighting controls. Internally powered, via a single 9 volt battery (accessible through the end-cap of the main weapon).

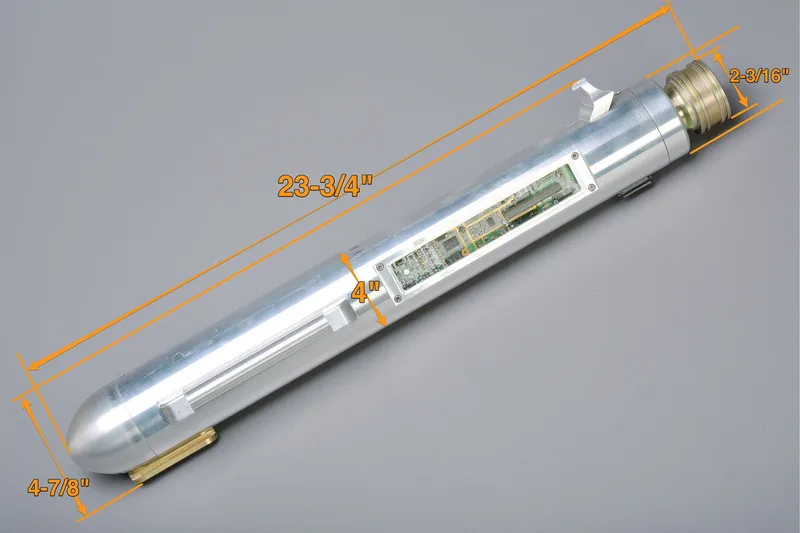

The main weapon.

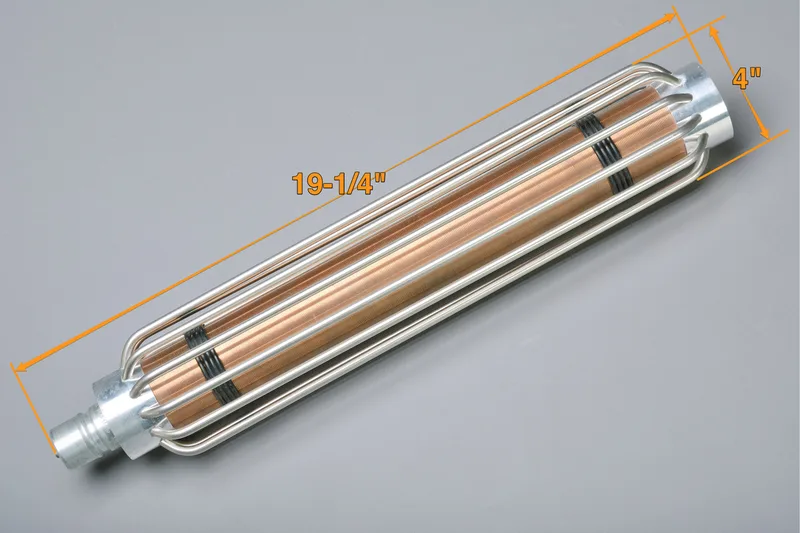

The barrel assembly.

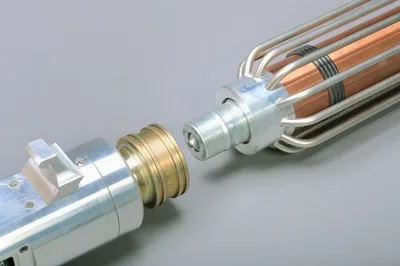

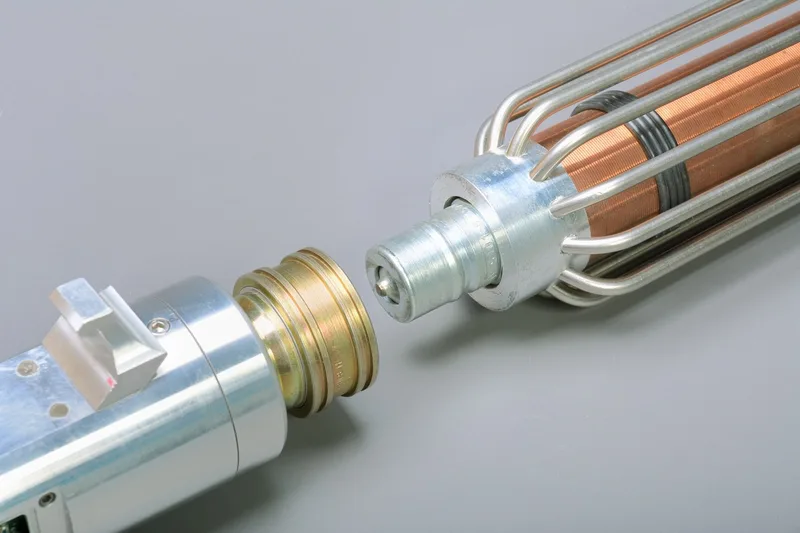

It is attached to the main weapon...

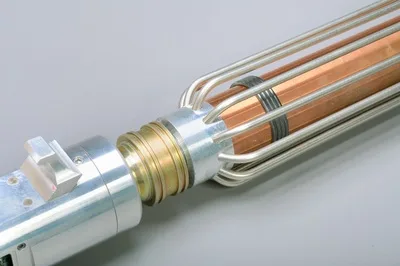

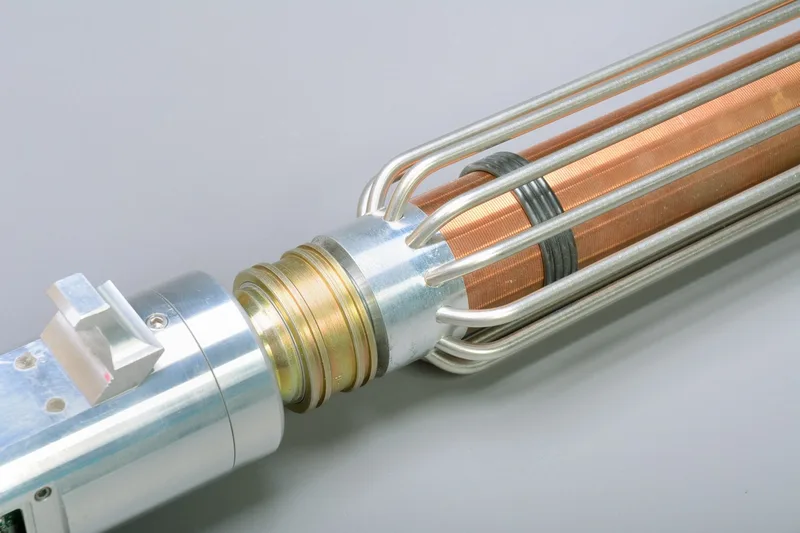

..via a quick-connect coupling.

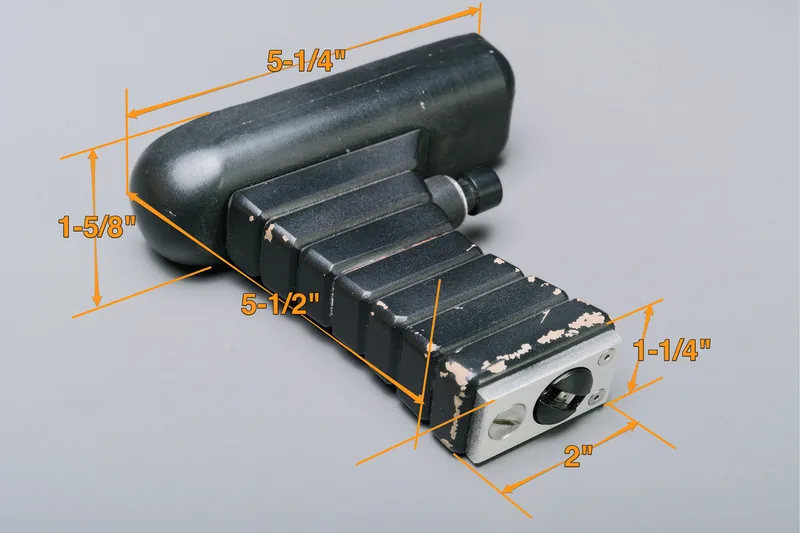

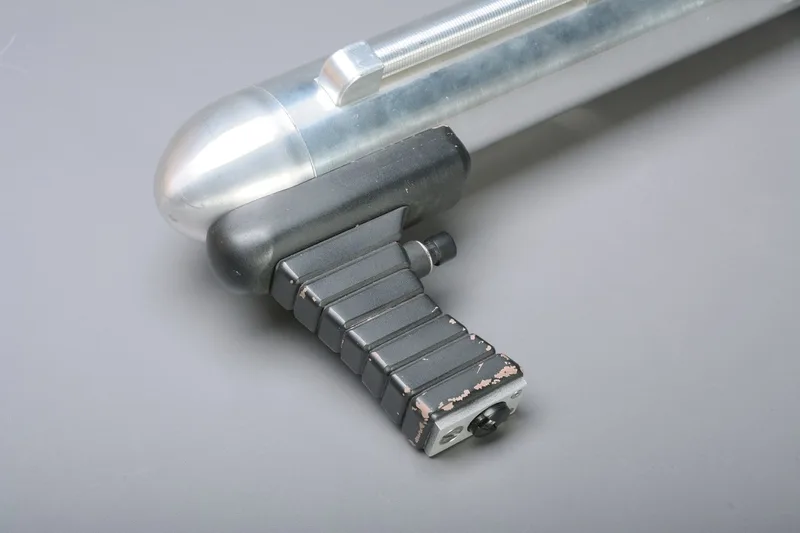

The pistol grip.
It is attached via a quick-connect locking shoe, located on the main weapon, directly beneath the end-cap.

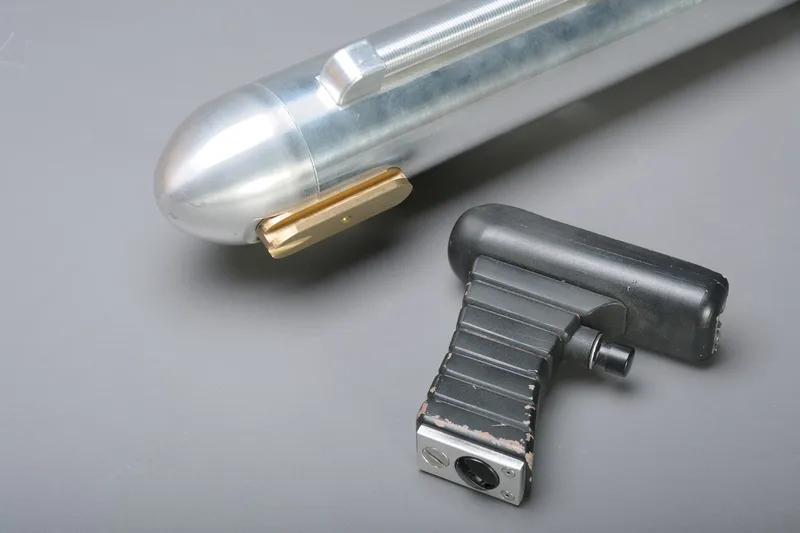

The pistol grip is first aligned with the outboard end of the shoe...

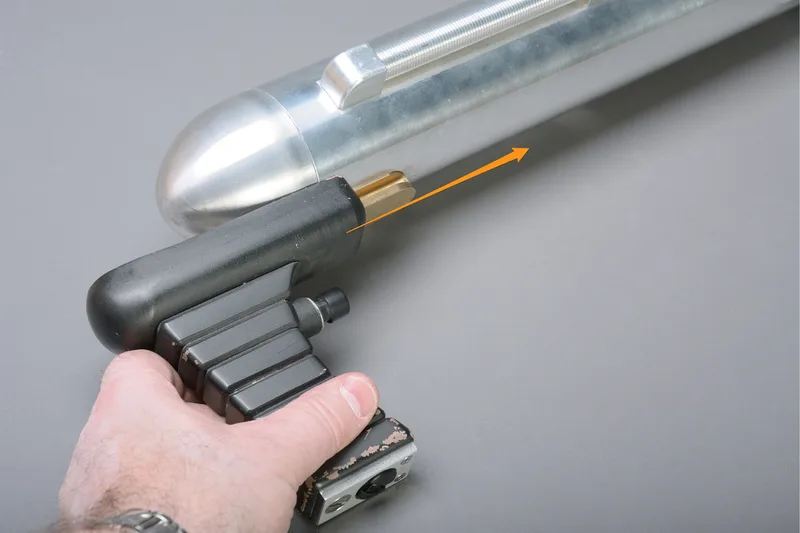

…then slides forward and locks in place.

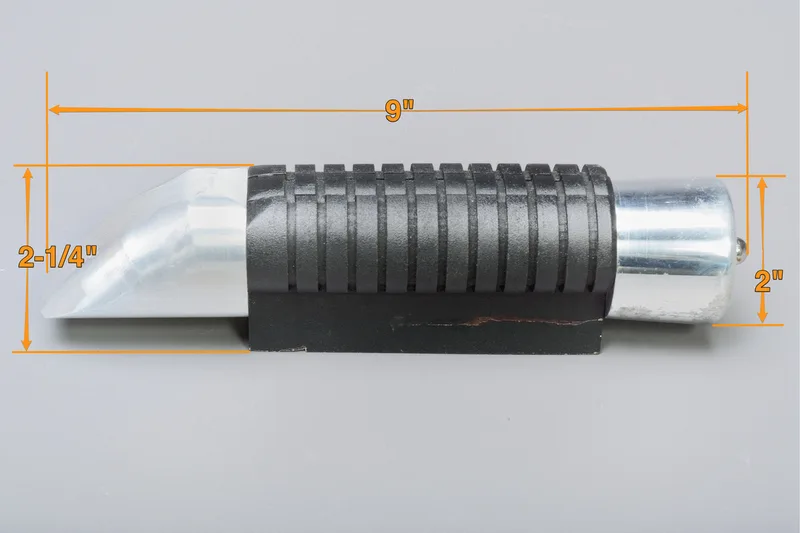

The fore grip.
It attaches to another, smaller, quick-realease shoe located under the main weapon, near the barrel coupling...

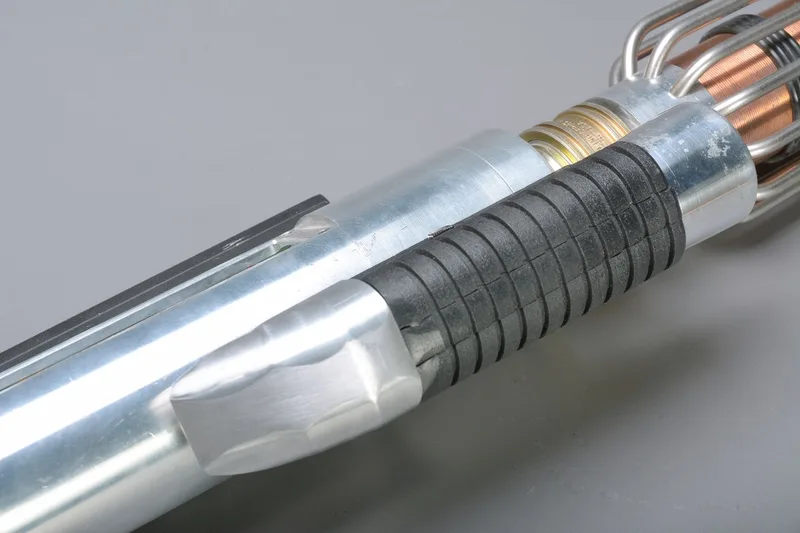

It aligns with the inboard end of the shoe...

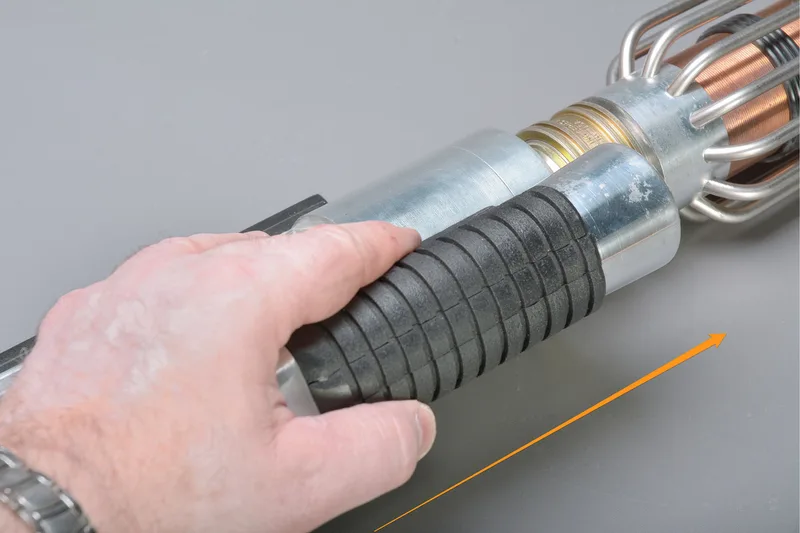

…then slides forward and locks in place.

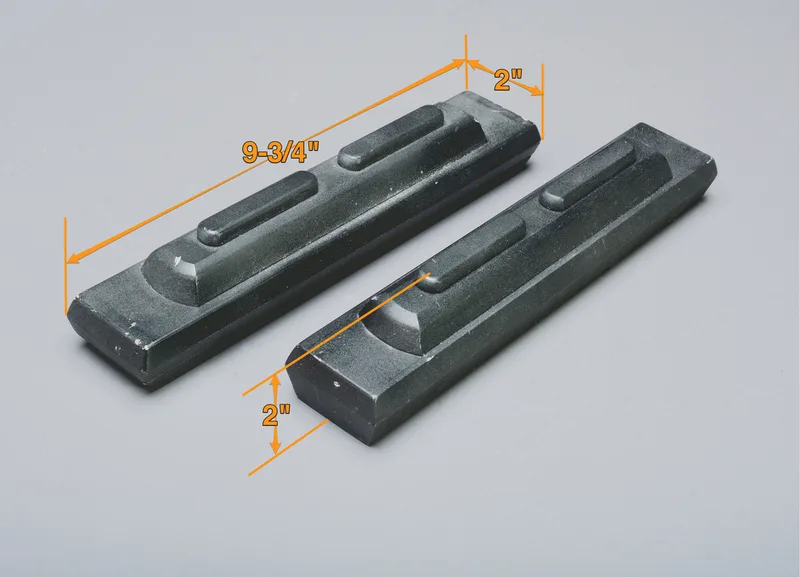

The power packs. One unit possesses magnets for coupling with the main weapon (the other depicts an unused "spare").

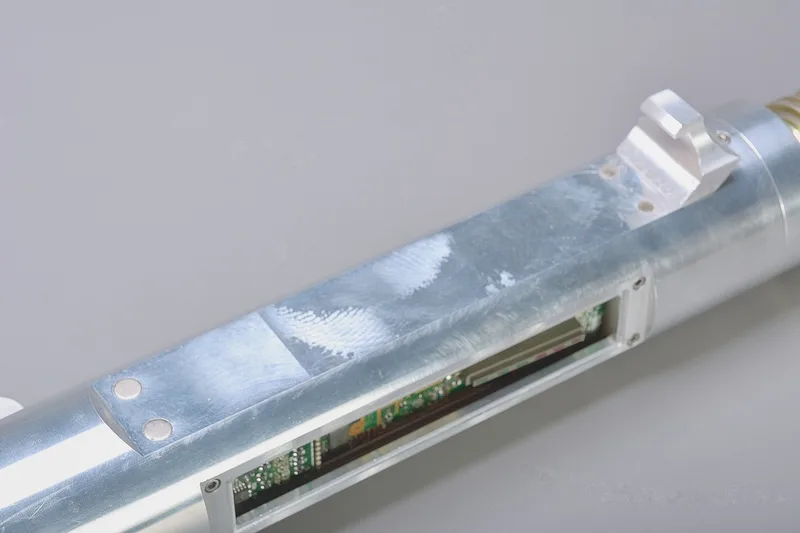

It is attached to a flat recess in the top of the main weapon, via magnetic coupling.

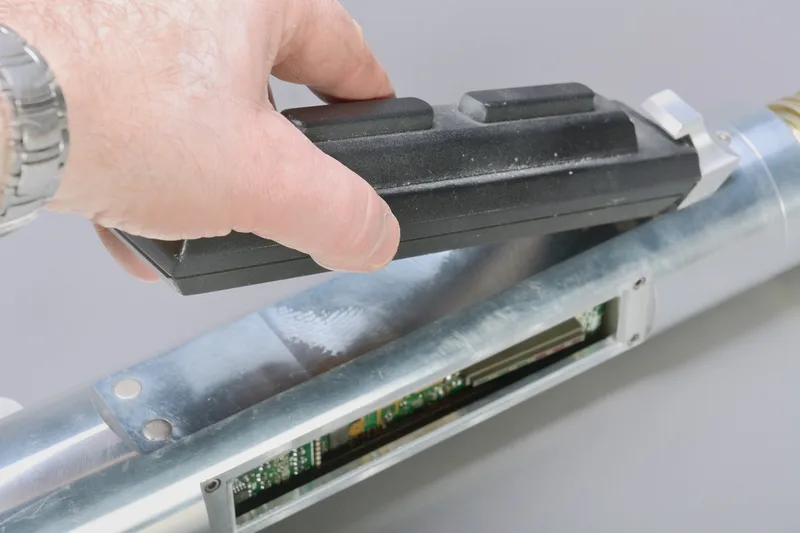

The front of the power pack is first positioned, with one end inserted into a stop located near the barrel coupling...

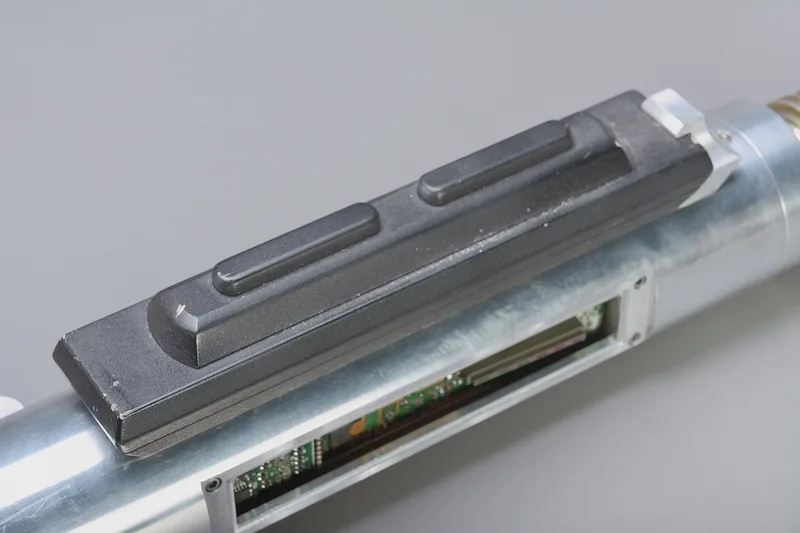

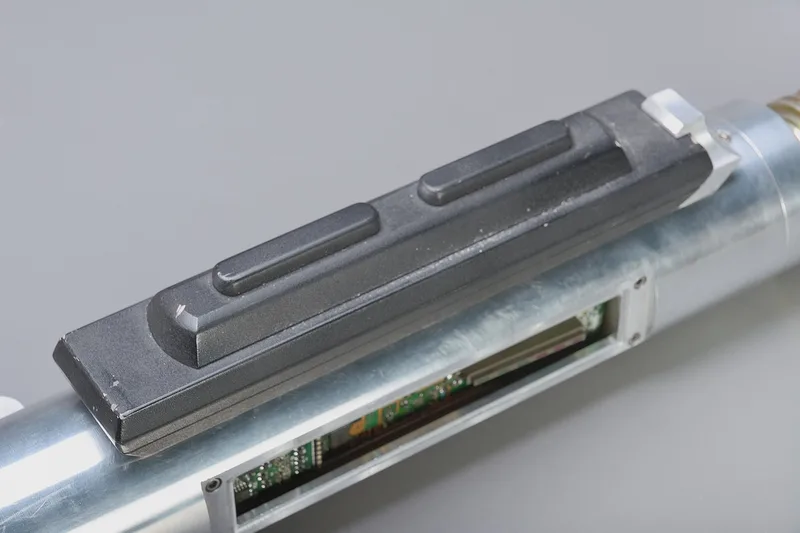

… then is brought down to rest. It is now engaged.

Video Clip—Animated LED Effects
