Circa 1982 to 1988

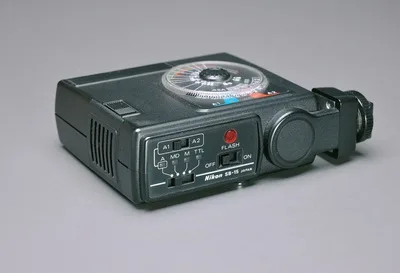

Control detail.

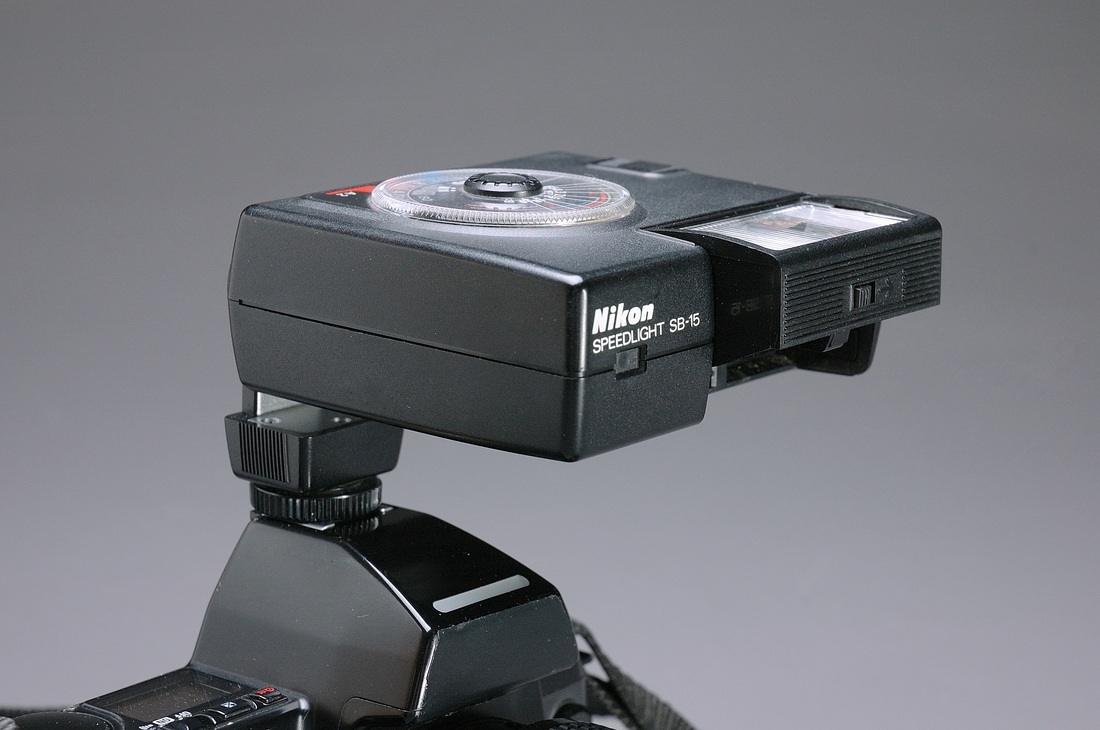

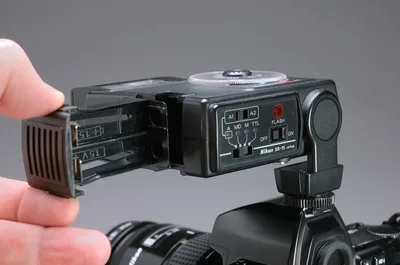

Removable battery pack (holds 4-"AA" batteries).

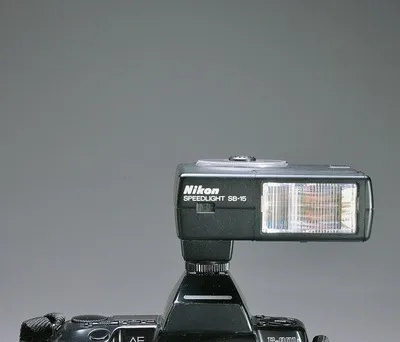

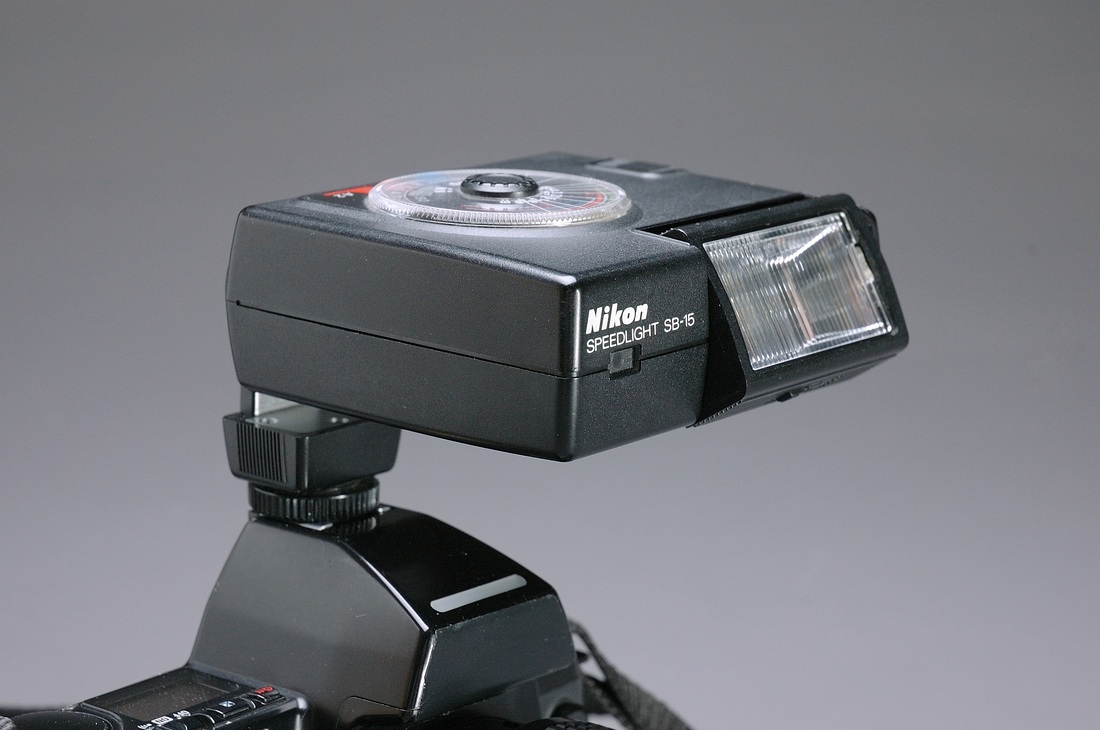

Features horizontal...

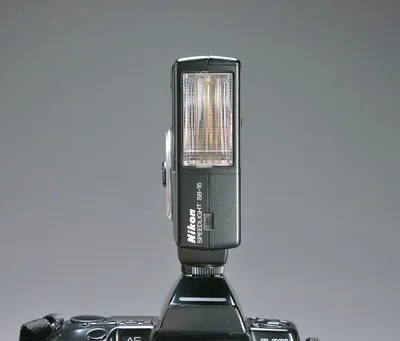

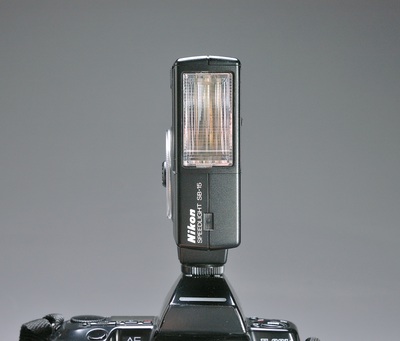

…and vertical orientation.

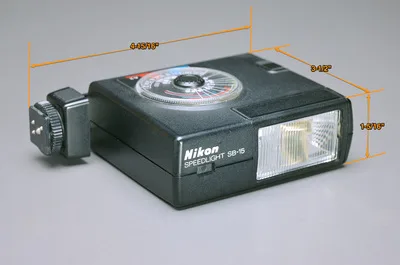

Dimensions.

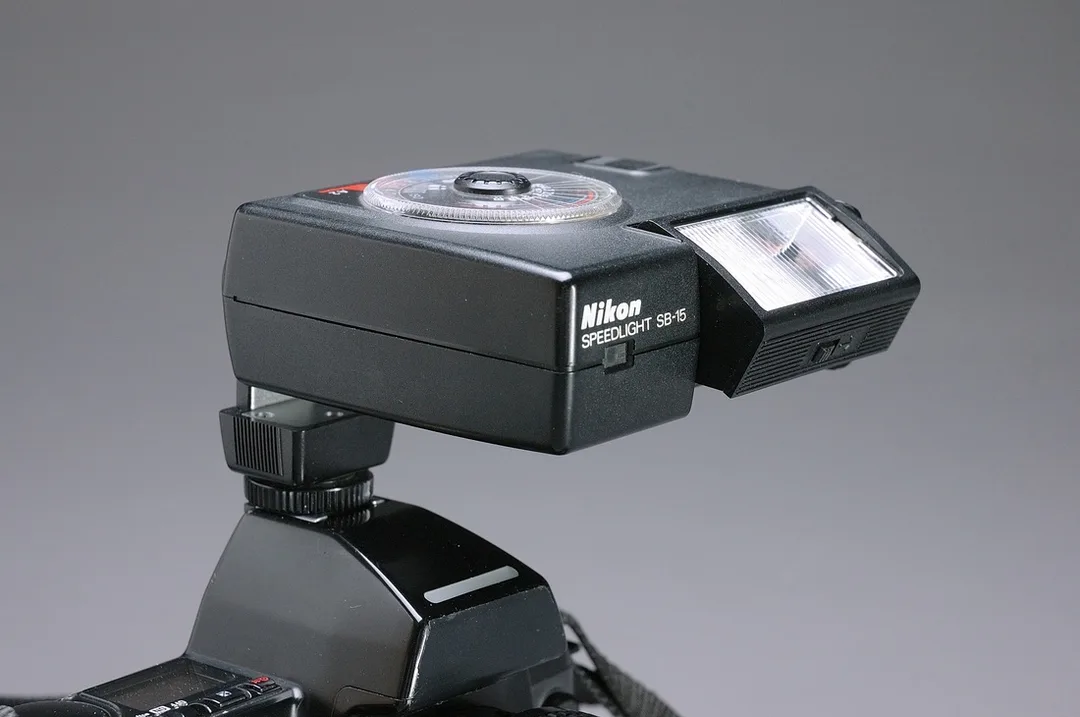

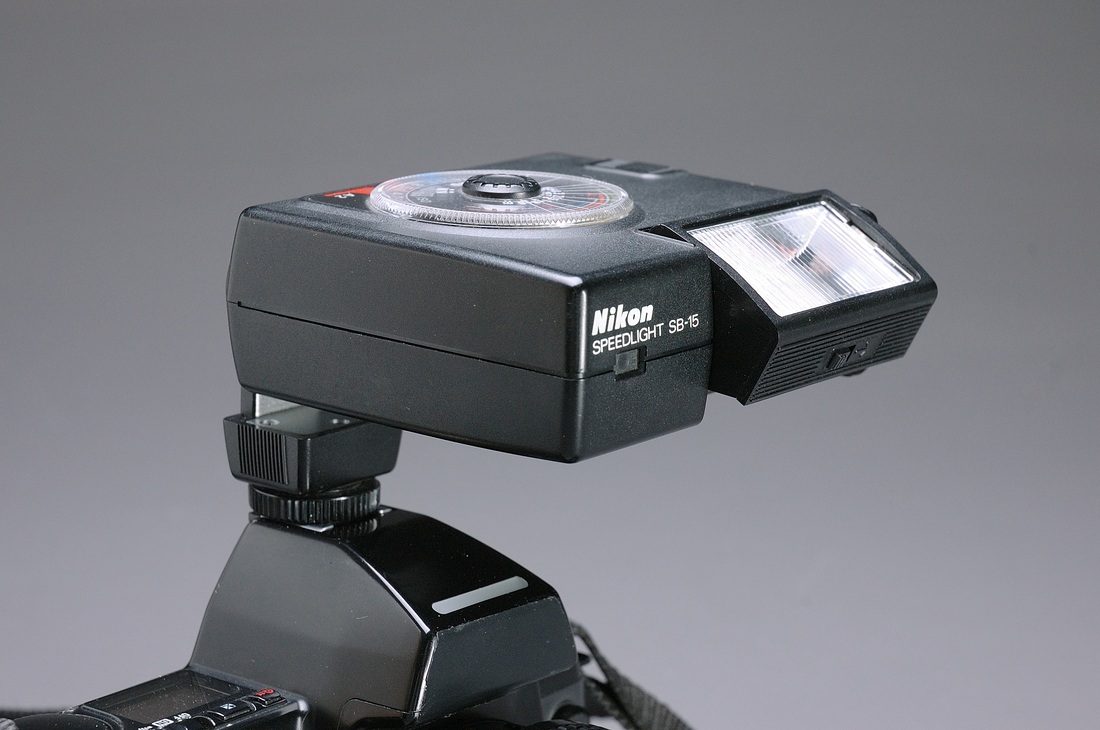

Adjustable Flash Head
Key Features
- TTL flash control with FA, FE2, FG, and Nikonos V (and later TTL-capable models, as well); two-aperture automatic flash with other models.
- Head can be rotated through an arc of 180 degrees (click stops every 90 degrees), and tilted to 90 degrees (click stops at 15, 30, 60, and 90 degrees).
- Accessory SW-6 wide-angle adapter for 28mm lens coverage.
- The SB-15 can synchronize with up to five additional off-camera flash units. Four frame motor drive capability (up to 3.8 fps).
Specifications
- GN: 82 (ft), 25 (m)
- Weight: 9.5 ounces (270g) (w/o batteries)
- Size: 1.7” (42.5mm) tall x 4” (101mm) wide x 3.5” (90mm) deep
- Power: four AA batteries
- Recycle Time: 8 seconds minimum (full discharge)
- # of Flashes: ~160 at full manual
- Flash Duration: NA
- Coverage: 35mm lens (60 degrees horizontal, 45 degrees vertical)
- Case: SS-15
