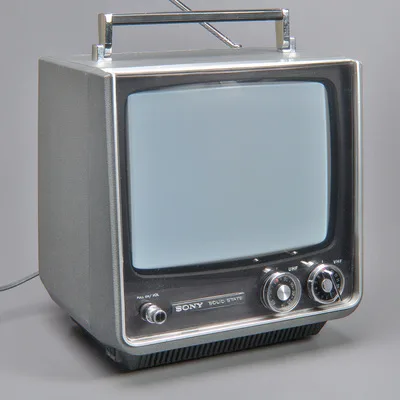

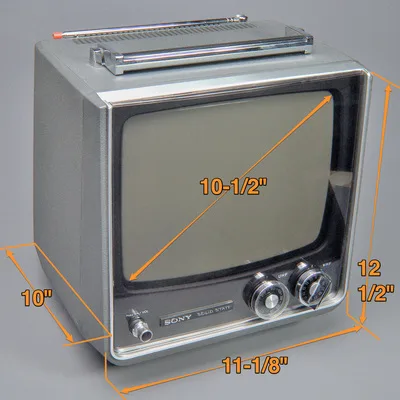

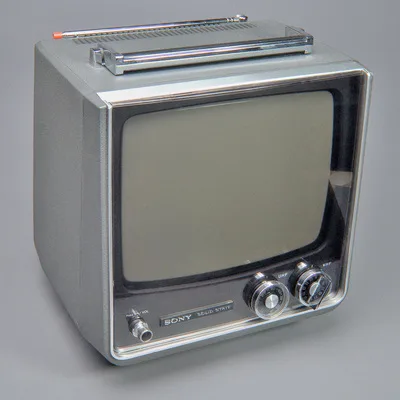

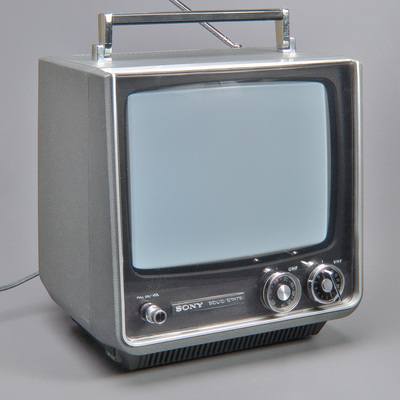

Sony TV-112 Portable Television Receiver
Circa 1971

This television was often paired with Sony's portable video tape recorders, as it could be powered via 110 volt AC, or 12 volt DC, for maximum utility.
Unit is fully operational.

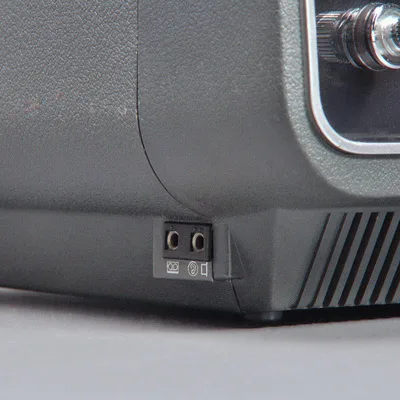

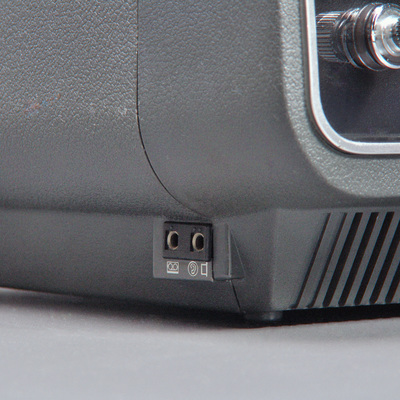

Audio output connections: "line out" & "headphone".

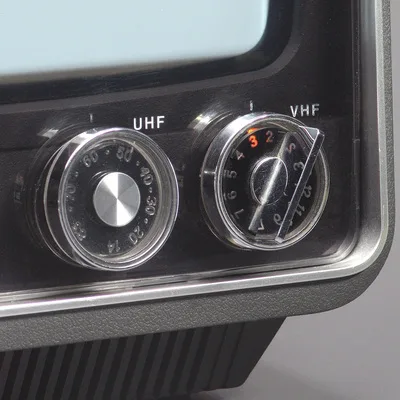

Backlit channel indicator.

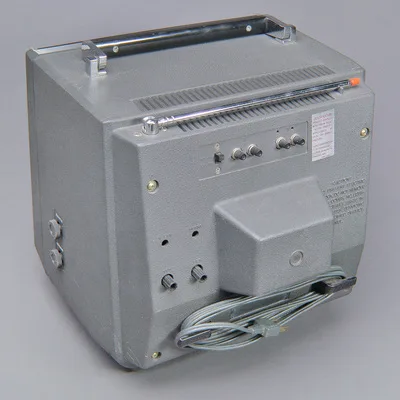

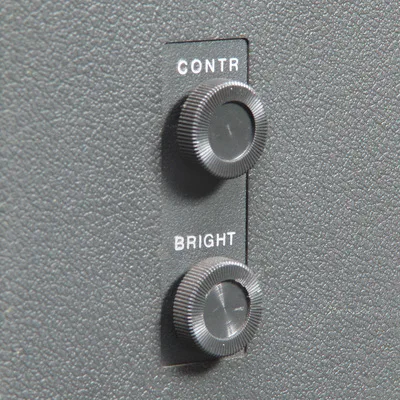

Picture controls are located on the right side ("horizontal" & "vertical" controls are located at the rear).

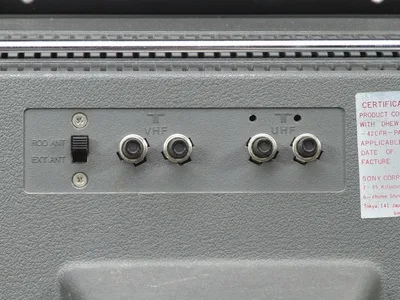

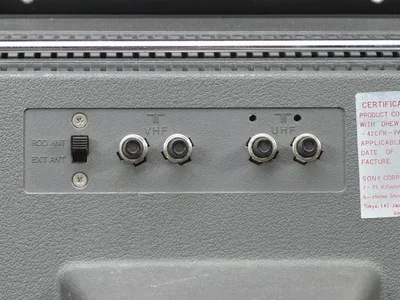

In addition to the telescopic antenna, external antenna connections are possible. These connections (and antenna selector switch) are located at the back. VTR's equipped with RF output could connected here for playback.

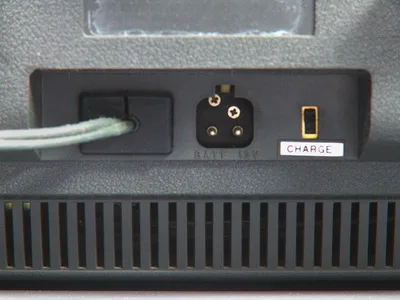

Normally powered via 110 volt AC, connection for 12 volt power is also provided, to make automotive or battery pack use possible.

Reference Materials


New York Magazine Ad - 1971


Sony Magazine Ad - 1972

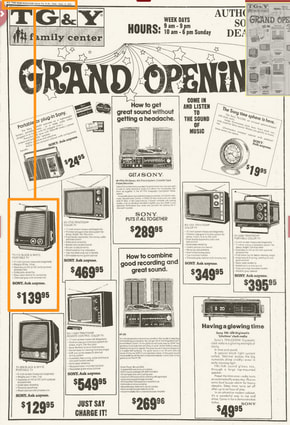

TG & Y Newspaper Ad, Santa Fe New Mexican, Wednesday, September 5, 1973 (Page 12)

Operating Instructions

Loading PDF...

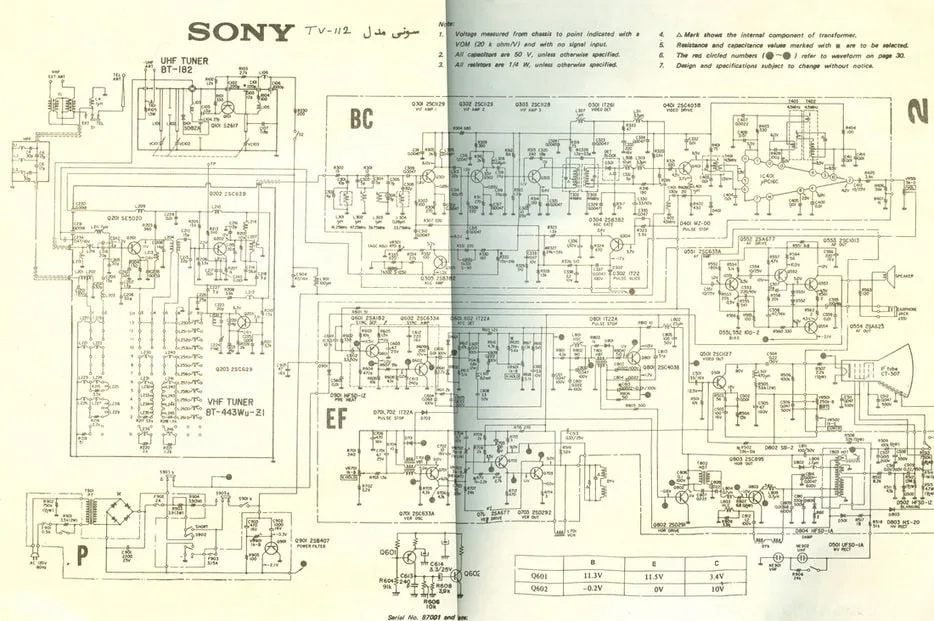

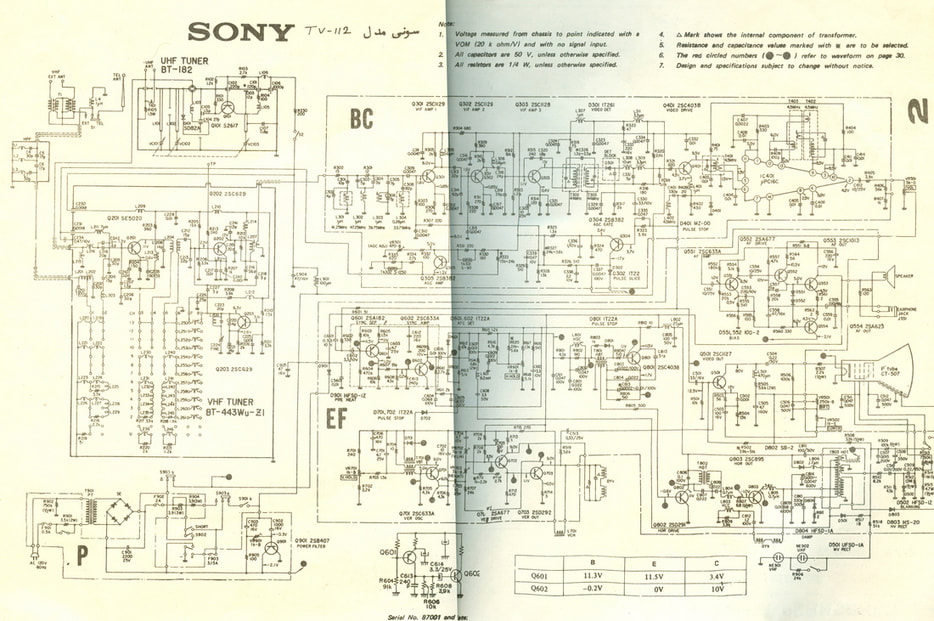

Circuit Diagram

(click on image to enlarge)
