SONY Videocorder AV-3600 (VTR)
Circa 1970

Record & playback capable. Uses 1/2" tape @ 7.5 ips for up to 60 min. recording time with 7" reel. Resolution up to 300 lines, EIAJ NTSC b/w standard.
Dimensions.

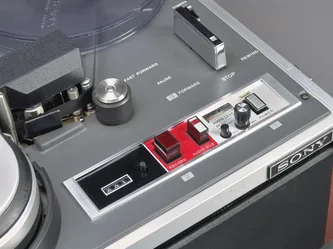

Auto & manual audio gain control with built-in VU meter & tape footage-counter.

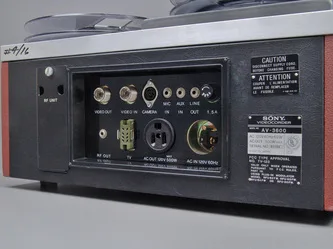

Real panel showing all input/output connections.

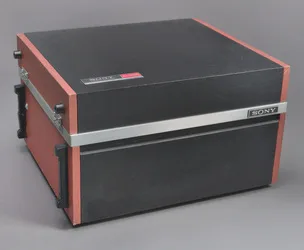

Lid attached for transport.

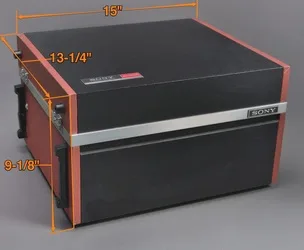

Dimensions.
7" reels of 1/2" video tape supplied.

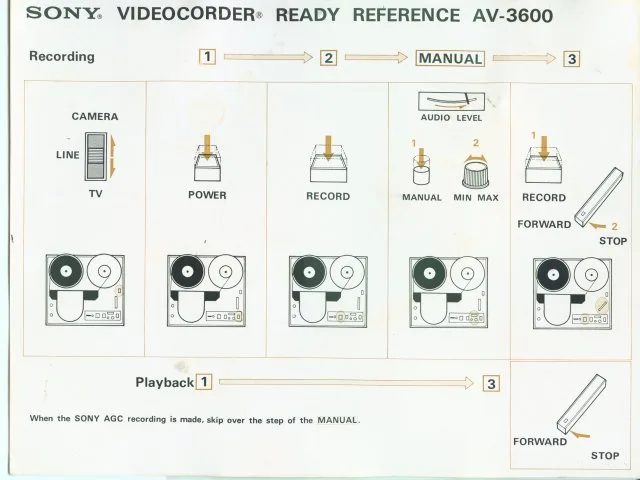

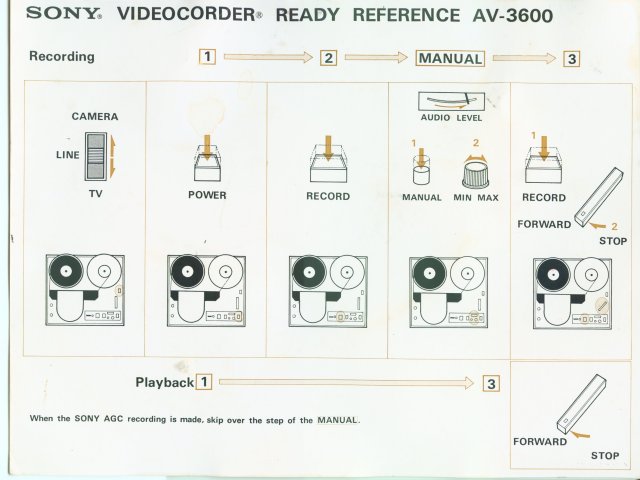

Ready Reference


AV 3650 Operating Instructions
​(nearly identical to the AV 3600 except with stereo audio)

Loading PDF...

AV 3600 Service Manual
