AKAI VC-100 Video Camera / VT-100 Video Tape Recorder / VM-100 Video Monitor (Analog/B&W)
Circa 1969

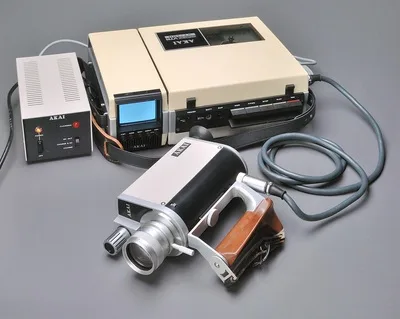

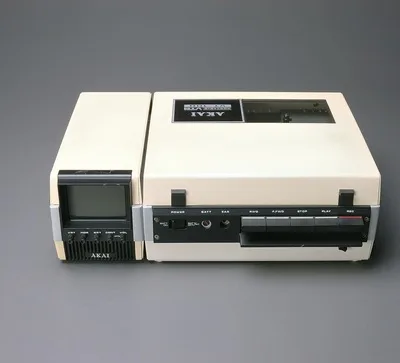

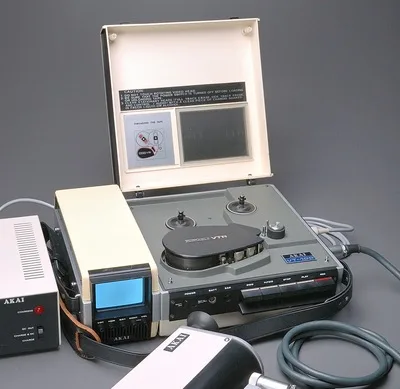

Components consist of a Power Supply/Charger, Video Monitor, Portable VTR, and Video Camera.

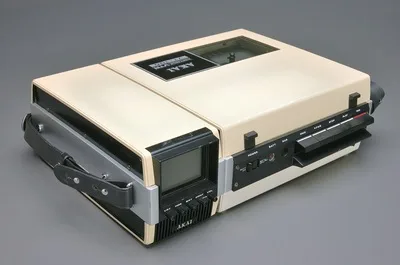

The smallest unit of it's kind, the VTR records video (and audio) on a novel ¼" wide reel-to-reel video tape format. (The VT-100 cannot be used with ¼" audio tape.)

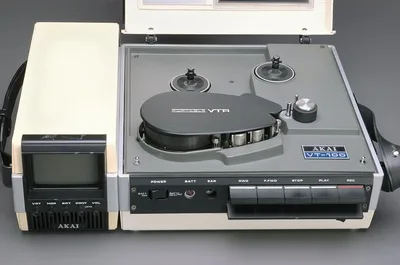

Detail of controls.
To further enhance portability...

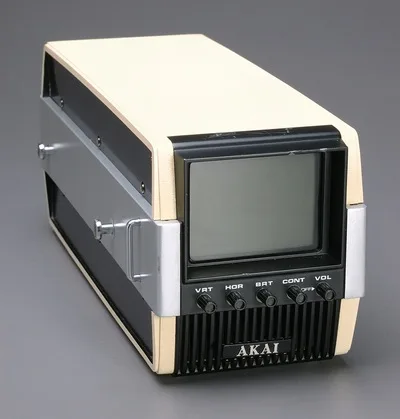

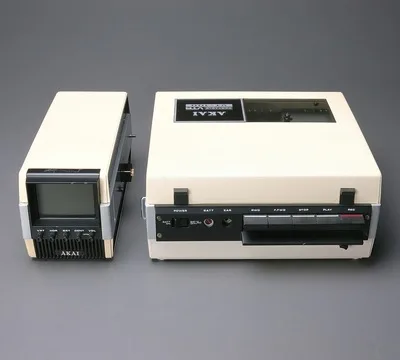

….the monitor can be detached.

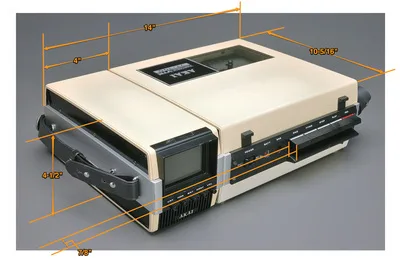

Dimensions.

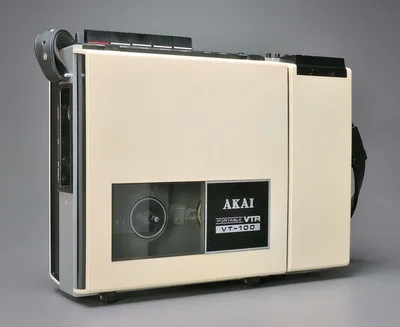

The VT-100 is carried in this orientation, via the integrated shoulder strap.

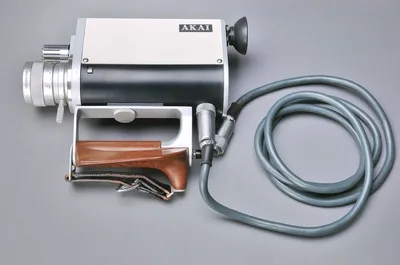

The VC-100 black & white video camera.

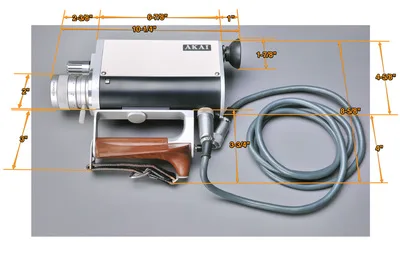

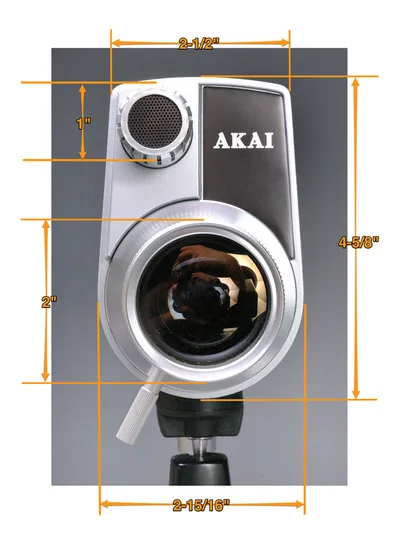

Dimensions.

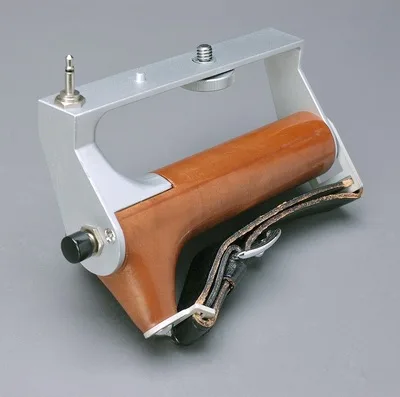

The ergonomic pistol-grip is removable.

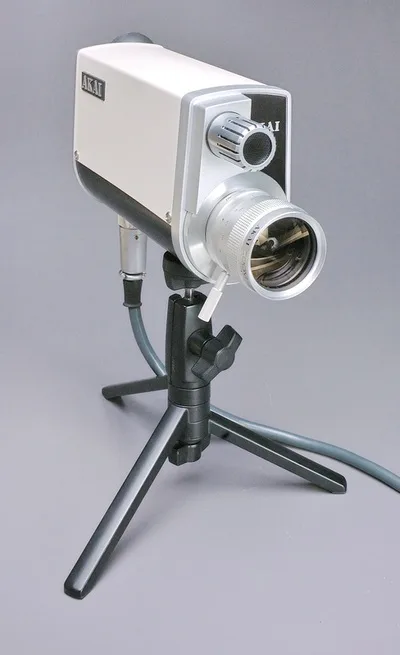

This allows mounting to standard tripods and camera mounts.

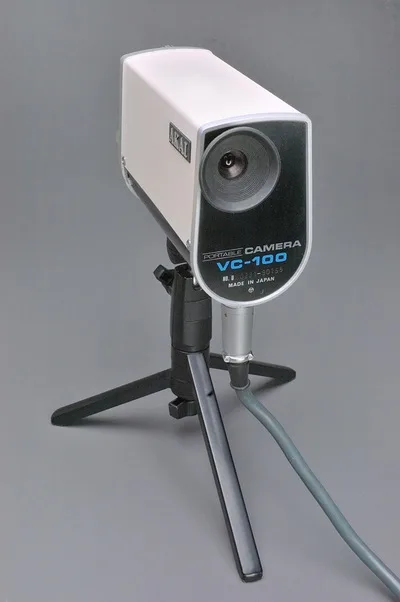

An internal beam-splitter provides a novel optical viewfinder featuring a micro-prisim focusing aid.
Integrated microphone and F1.8 / 10-40mm zoom lens.

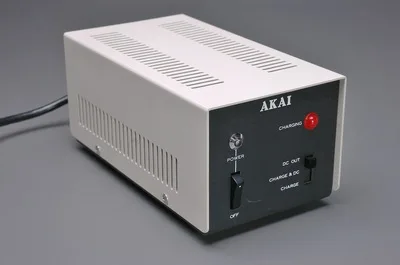

Power supply/charger unit.

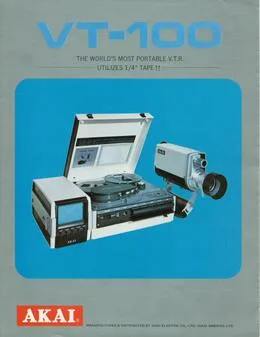

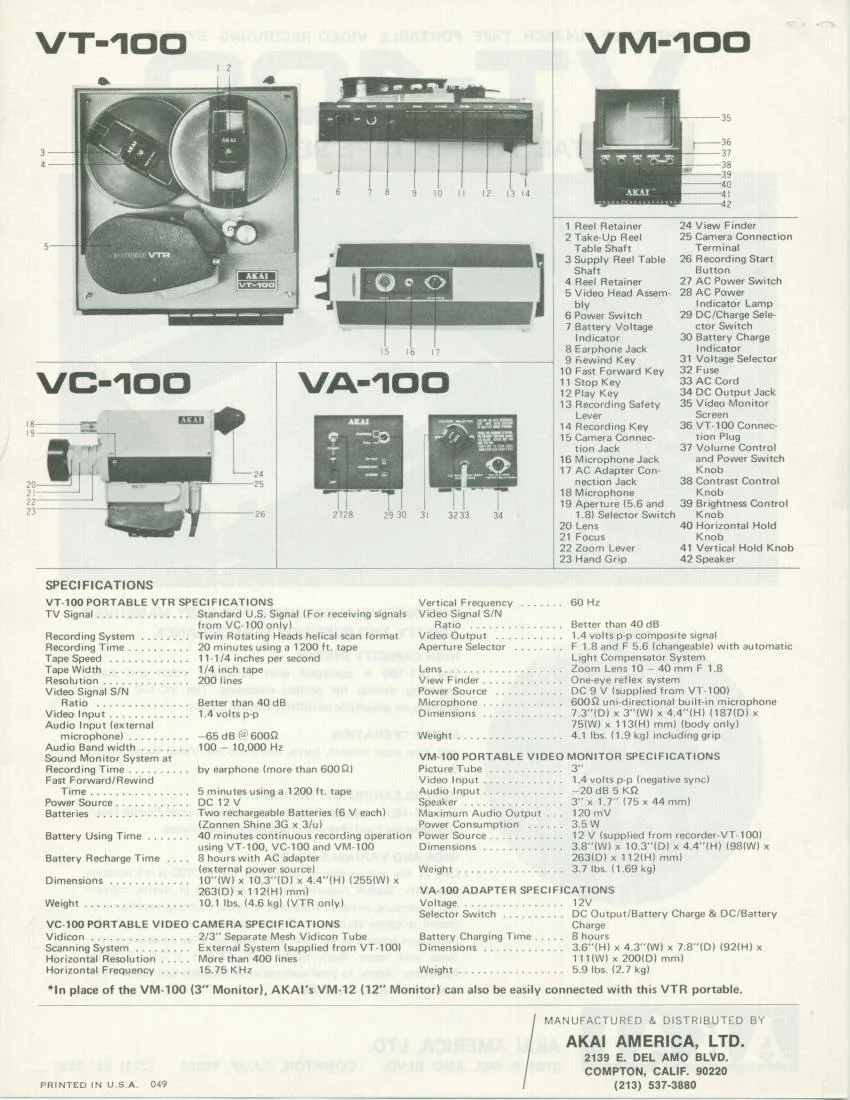

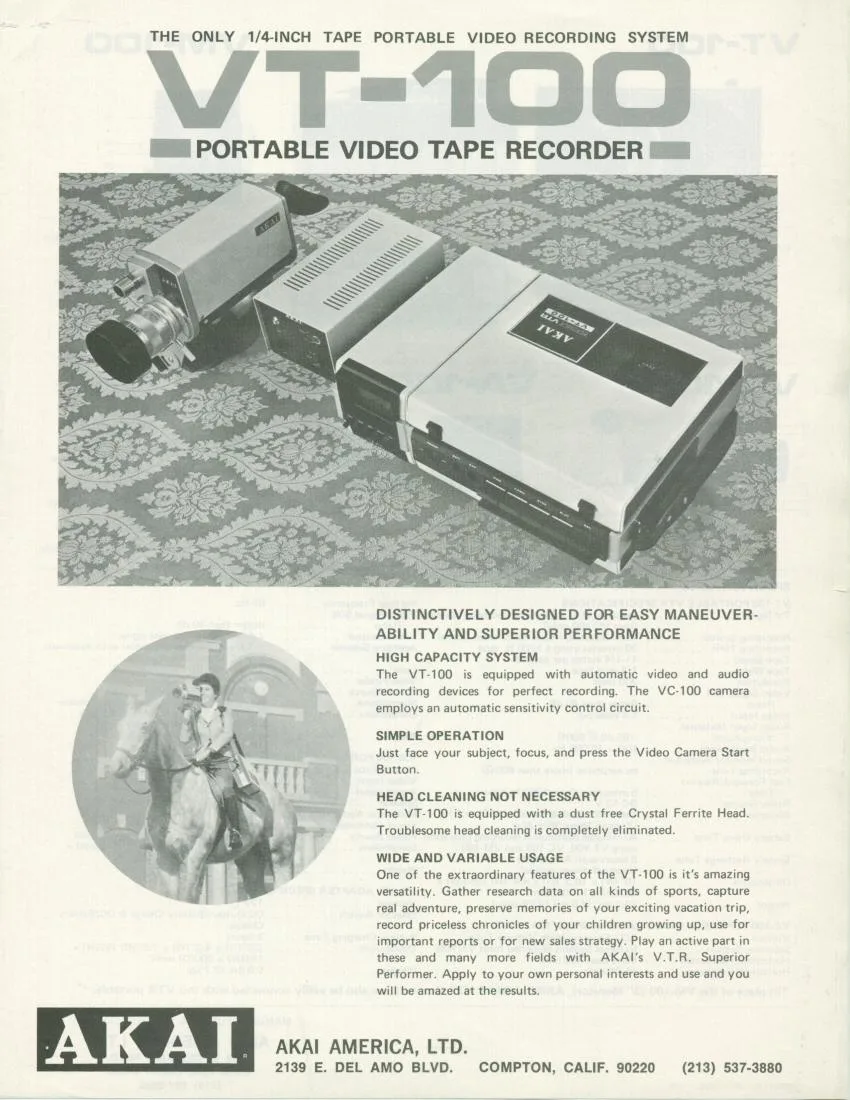

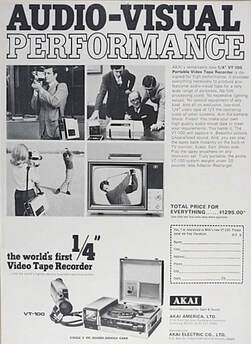

Published Period Reference
Click image to enlarge.
Click image to enlarge.
Click image to enlarge.
Full brochure below.
