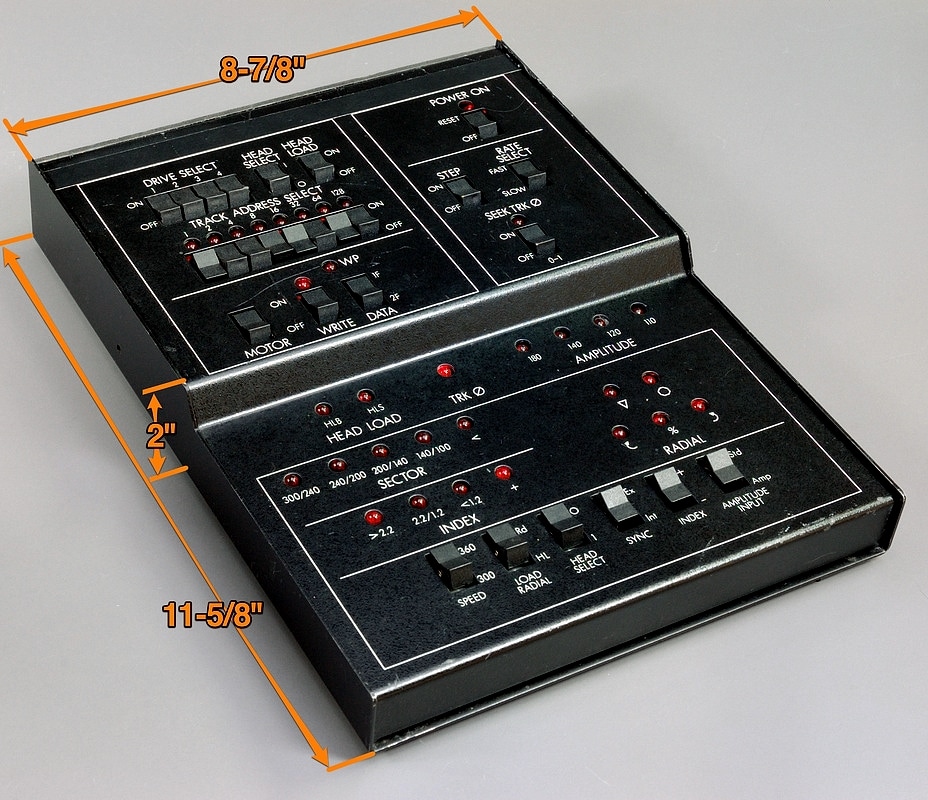

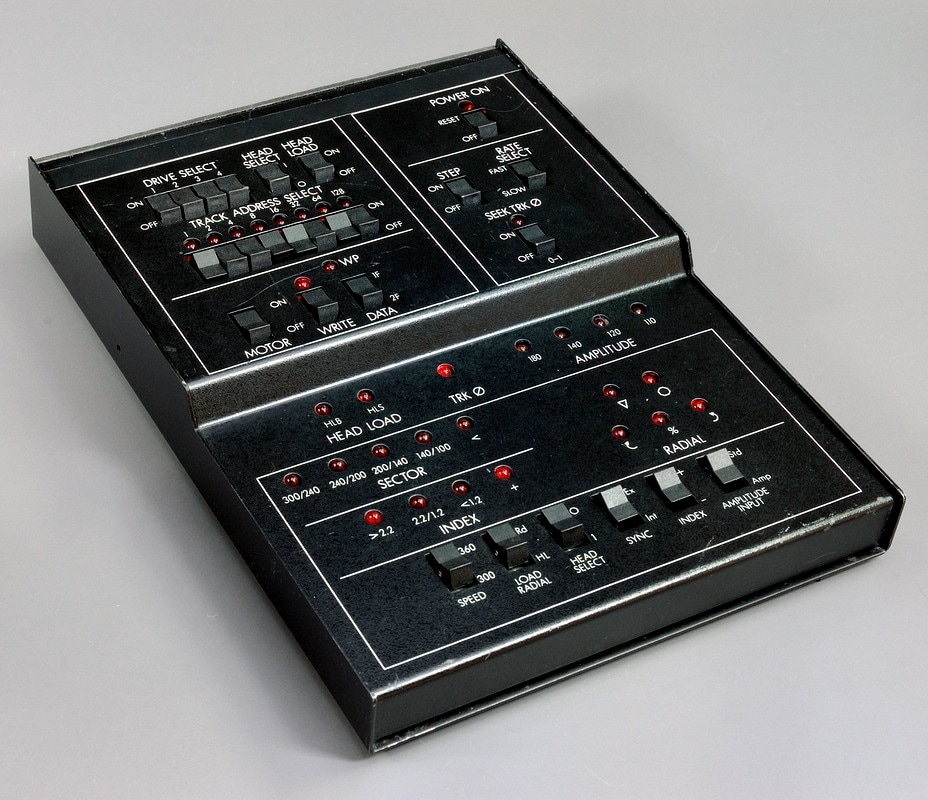

Control Panel for a Lynx 450 Fixed Disk Drive.
​
The "Lynx" name and the model number are the critical keys here.
Sourced Data and Identification

• Manufacturer: Lynx Computer / Lynx Data Systems

• Model: Lynx 450 Fixed Disk Drive

• Era: Late 1970s to early 1980s.

• Context: This drive was designed as a peripheral for popular minicomputers of the era, such as the Data General Nova and Data General Eclipse series. Lynx was a well-known third-party supplier of memory and storage upgrades for DG systems.

Breakdown of the Panel's Function (Based on Standard Lynx Documentation).  The panel's captions align perfectly with the operation of a hard disk drive of this vintage:

• DRIVE SELECT (0-7): The Lynx 450 could be configured in a multi-drive daisy-chain. These switches and LEDs allowed the operator to select and monitor which of up to eight physical drives was being addressed.

• HEAD SELECT (0-7): A Lynx 450 drive typically used a disk platter stack with multiple surfaces. This selected which one of the eight read/write heads was active.

• HEAD LOAD: As you suspected, this was a physical command. The heads on these drives were parked when not in use. Pressing this button would command the selected drive to move the heads from their parked position onto the data surface of the disk.

• TRACK ACCESS SELECT (SEEK/RESTORE): This is a classic function.


• RESTORE would command the drive's actuator to move the heads to Track 00 (the outermost track).

• SEEK would initiate a move to a specific track number, which was likely input via a set of binary switches elsewhere on the drive or controller.

Historical Significance and Data SourceLynx Computer Technology was a significant player in the early minicomputer ecosystem. They provided cost-effective alternatives to OEM (Original Equipment Manufacturer) hardware from companies like Data General and DEC.

You can find technical information about Lynx products in several places:

• Bitsavers.org Archive: This is the best source. I found a direct match for you. Here is the link to the Lynx 450 Product Description Brochure: Lynx 450 Fixed Disc Drive Brochure

​
Vintage Computer Forum Discussions: A quick search shows that the Lynx 450 and its control panel are known and discussed among collectors. For example, there are threads about restoring Data General systems that use Lynx drives.​
A very identifiable and desirable piece of vintage computing history. It's not a generic part but the specific control panel for a Lynx 450 disk drive, a peripheral for Data General minicomputers. The presence of the "Lynx" logo and model number on your website page confirms this beyond doubt.
​
This panel would have been the primary interface for a computer operator to manually control, initialize, and troubleshoot the hard drive—a far cry from the plug-and-play storage of today. It's a fantastic artifact from the dawn of the hard disk era.

Here are the key links to documentation for the Lynx 450 Fixed Disk Drive and its associated control panel. The first one is the most direct match and is an excellent resource.

Primary Documentation

• Lynx 450 Product Description Brochure (Dec 1979)



• Link: Lynx 450 Fixed Disc Drive Brochure on Bitsavers



• What it is: This is a sales and technical overview brochure. It will show you pictures of the entire drive assembly (likely with your control panel mounted on it), list its specifications, and explain its features in a clear, marketing-oriented way. This is the best place to start to understand the unit as a whole.

Deeper Technical ManualsFor a much more detailed, "under the hood" understanding, including schematics and maintenance procedures, these service manuals are invaluable.

• Lynx 450 / 550 Service Manual (Preliminary - May 1980)



• Link: Lynx 450/550 Service Manual on Bitsavers



• What it is: This is a preliminary service manual for technicians. It contains:



• Theory of Operation: How the drive electronics and mechanics work.



• Installation Instructions: How to set it up and cable it to a host computer (like a Data General Nova).



• Adjustments and Alignments: How to calibrate the drive.



• Diagnostics: How to troubleshoot problems.

​

• Your control panel will almost certainly be described and diagrammed in the "Operator Controls" section.



• Lynx 450 / 550 / 460 / 560 Service Manual (Jan 1981)



• Link: Lynx 450/550/460/560 Service Manual on Bitsavers.  What it is: This is a later, more comprehensive version of the service manual that covers multiple models in the series. It will have the same type of information as the preliminary manual but is more finalized and complete.

How to Use These Documents:

• Start with the Product Brochure to get the big picture, then, dive into the Service Manuals. Look for chapters or sections titled:

​

• "Operator Controls"
• "Front Panel Description"
• "Theory of Operation - Control Panel"



• The manuals will contain logic diagrams and switch/LED descriptions that will tell you exactly what signal each button press sent and what condition each LED was monitoring.
